Category 6A Cable
Augmented Category 6
(Category 6A / Cat6A)
The TIA completed a new
specification that defines enhanced
performance standards for
unshielded twisted pair cable
systems. Draft specification
ANSI/TIA/EIA-568-B.2-10 specifies
cable systems, called "Augmented
Category 6" or more frequently as
"Category 6A", that operate at
frequencies up to 500 MHz and will
provide up to 10 Gbit/s bandwidth.
The new specification has limits on
alien crosstalk in cabling systems.
Augmented Category 6 specifies
cable operating at minimum
frequency of 500 MHz, for both
shielded and unshielded. It can
support future 10 Gbit/s
applications up to the maximum
distance of 100 meters on a
4-connector channel.
Augmented Category 6
(Category 6A / Cat6A)
The TIA completed a new
specification that defines enhanced
performance standards for
unshielded twisted pair cable
systems. Draft specification
ANSI/TIA/EIA-568-B.2-10 specifies
cable systems, called "Augmented
Category 6" or more frequently as
"Category 6A", that operate at
frequencies up to 500 MHz and will
provide up to 10 Gbit/s bandwidth.
The new specification has limits on
alien crosstalk in cabling systems.
Augmented Category 6 specifies
cable operating at minimum
frequency of 500 MHz, for both
shielded and unshielded. It can
support future 10 Gbit/s
applications up to the maximum
distance of 100 meters on a
4-connector channel.
| "Always the Best Alternative" |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
 |  |  |  |

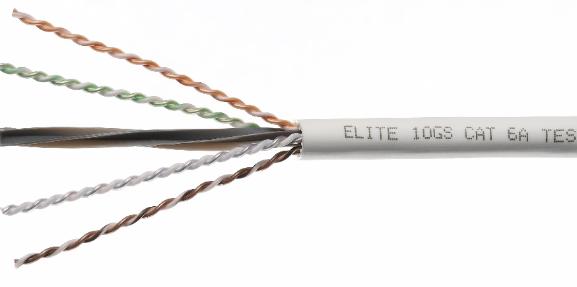

| CAT6A |
| Elite |
10GS
| UTP |
| FTP Shielded |
Plenum and PVC Solid
| 650MHz |
| 650MHz |
Plenum and PVC Solid
